PU Primary Belt Scraper FDA Batching Plant Spare Parts

  • 1
  • 2
  • 3

Brand Name : TSKY

Model Number : 001

Certification : ISO, CE, BV, FDA，SGS

Place of Origin : Qingdao China

MOQ : 5 sets

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 5000 sets/month

Delivery Time : 5-8 working days

Packaging Details : conveyor belt cleaner packed in wooden case or as requirement，20GP，40GP，or 40HC Container

Condition : New

Warranty : 6 months

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining

Machinery Test Report : Provided

Belt width : 500 ~ 2000 mm

Blade : PU, replaceable

Spring tensioner : Stainless steel

Belt speed : ≤3.5(m/s)

Temperature : -40~90 ℃

Material Humidity : ≤15%

Mounted : 100mm from the head pulley

Contact Now

Pu primary belt scraper poly urethane primary conveyor belt cleaner

Poly Urethane Conveyor Belt Cleaner PU Primary Belt Scraper Self-Adjusting Tensioner good price made in china

TSKY can offers a wide range of primary, secondary and tertiary belt cleaners of different types, as well as very effective belt plows, pulley cleaners etc.

Designed to keep the conveyor belt, and pulleys and rollers as clean as possible, thus prolonging service life, improving belt tracking, minimizing spillage, raising performance and improving safety and economy, they are of quality, compact and efficient design and easy to maintain.

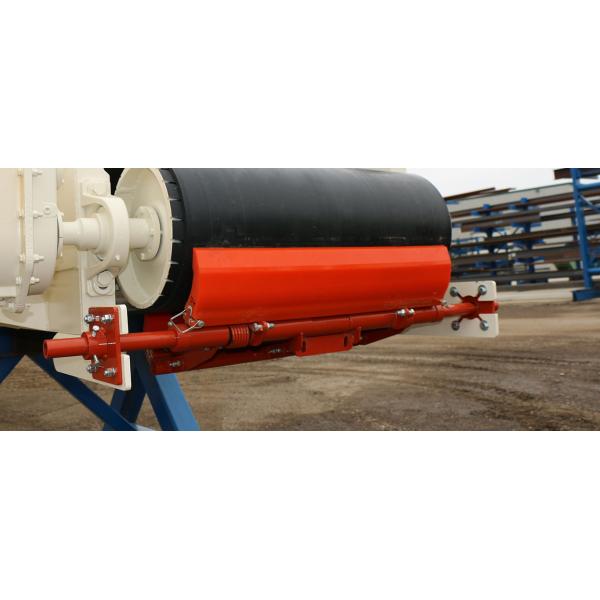

Installed on the head pulley to provide effective cleaning.

1. Appliation for the primary conveyor belt cleaner

1) belt width: 500 ~ 2000 mm

2) belt speed: ≤ 3.5m/s

3) temperature: -40 ~ 90 ℃

4) material humidity: ≤15%

2. Feature for the primary belt scraper

1) replaceable pu blade

2) easy installation

3) low maintenance

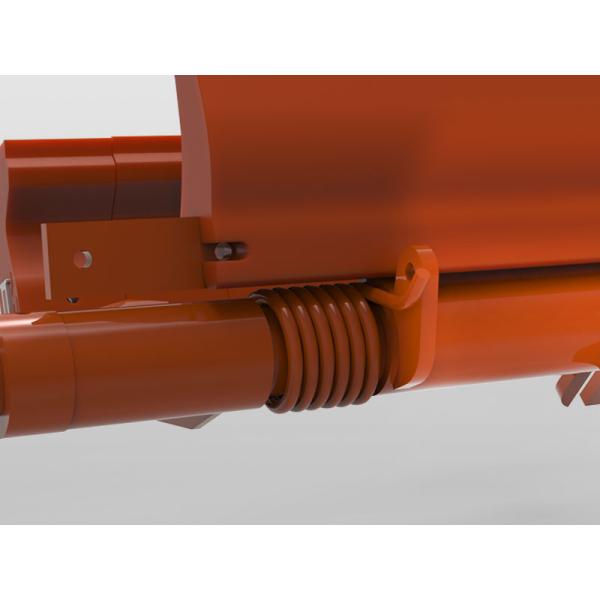

4) self-adjusting tensioner

5) extend belt life

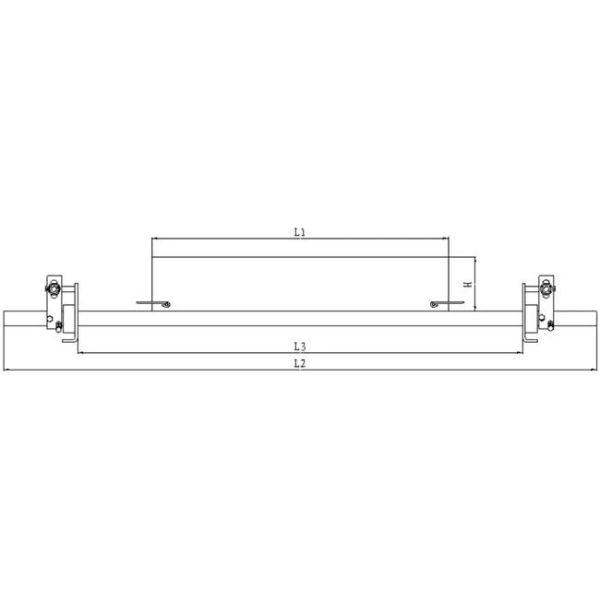

3. Standard dimensions for pu primary conveyor belt scraper

Model Belt width (mm) Blade width (mm) - L1 L2 (mm) H (mm) L3
TSKY-HPU-50 500 500 1400 182 According to condition of the side
TSKY-HPU-65 650 650 1600 182
TSKY-HPU-80 800 800 1800 182
TSKY-HPU-100 1000 1000 2000 182
TSKY-HPU-120 1200 1200 2200 182
TSKY-HPU-140 1400 1400 2400 182
TSKY-HPU-160 1600 1600 2600 182
TSKY-HPU-180 1800 1800 2800 182
TSKY-HPU-200 2000 2000 3000 182

PU Primary Belt Scraper FDA Batching Plant Spare Parts

PU Primary Belt Scraper FDA Batching Plant Spare Parts PU Primary Belt Scraper FDA Batching Plant Spare Parts

PU Primary Belt Scraper FDA Batching Plant Spare Parts

PU Primary Belt Scraper FDA Batching Plant Spare Parts

PU Primary Belt Scraper FDA Batching Plant Spare Parts

Note:

1) belt cleaners could be made as the customer's belt width and blade width;

2) blade width, pole length could be made as the customer's requirement.
